- input voltage: Single voltage input: 110VAC, 220VAC, 380VAC
- the output voltage: 150VDC (0-150V adjustable)
- the output current: 0-53A
- Power: 1500W~8000W
- the operating frequency: 47-63Hz
- efficiency: 90%
- dimensions: 280 * 180 * 63mm(280 * 180 * 130mm)

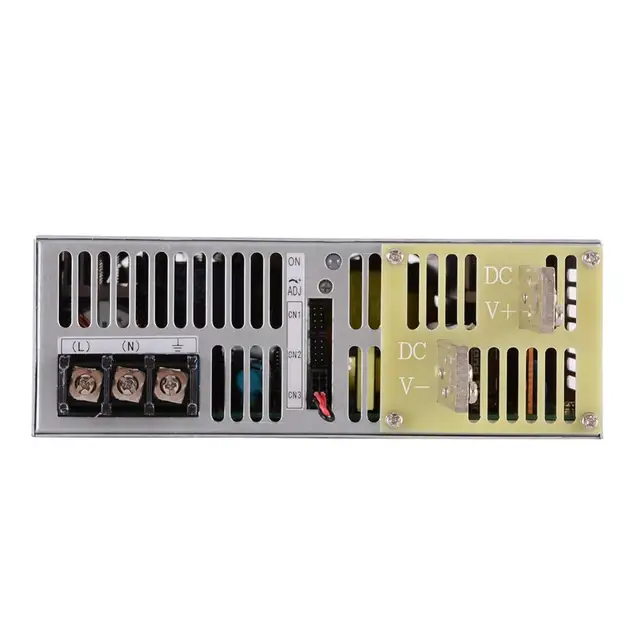

- the control port: CN3
The professional and high-power switching power supply, can be widely used in industrial automation, personal CNC stepper / servo systems DIY/motor
(For example: if the load device is a motor, the positive pole of the power supply output needs to be connected to the diode module to prevent the motor from reversing the impact switch power supply)
CCTV equipment and LED lighting equipment. Powerful features (for example, PWM control) and professional design (eg, double overlap in fan cooling) to ensure high reliability, high efficiency and power. Low cost makes widespread use, it is easier to accept.
High efficiency, high reliability and low cost.
1500W~8000W power to accommodate more equipment.
- Support 0-150V adjustable output voltage
- PWM control and regulation to ensure stable and accurate output voltage.
- Built-in dual fan forced air cooling.
- Built-in EMI filter.
- 100% full load burn-in test.
- Overcurrent, overvoltage, short circuit and thermal protection.
- Low output ripple and cry.
- Support 0-5V (0-10V) analog signal control output voltage (linear rise)
- Support 0-5V (0-10V) analog signal control output current (5%~100%)
- Support adjustable resistor to control output voltage
- Support adjustable resistor to control output current
- Support ON/OFF remote switch machine
- Support N+1 function
