RS485&MODUS digital touch screen thermostat heating for dual sensor electric heat 16A
Product Details

Promote£RS485&MODUS digital touch screen thermostat heating for dual sensor electric heat 16A Specification

  • Brand NameHESSWAY
  • Voltage220V
  • ClassificationLaboratory Thermostatic Devices
  • Plug TypeEU Plug

Promote£RS485&MODUS digital touch screen thermostat heating for dual sensor electric heat 16A Specification & Description Summary

,,

250V16A rs485 thermostat electric floor heating Dual sensor for wall heater, electric heating film, electric heating crystal



Interface description

The BAC-002 Modern Touch Screen Thermostat has been developed to on/off control Carbon fiber electrothermal film,Wall Carbon crystal electric heating plate,INFRARED HEATER,Carbon fiber heating cable,graphene heating film,electric floor heating

Technical Data:



Power Supply

95-240VAC, 50~60HZ



Display Accuracy

±0.5ºC

Probe sensor

Hidden & NTC3950, 10K

Power Consumption

<0.3W

Load current

16A

Temperature Adjustable Range

5 ºC - 35 °C

Limit Temperature Range

5-99°C

Differencen

1°C

Remote communication control

RS485&MODBUS

Running program

5+2 four periods

Installation

86*86mm or European 60mm round box

Certificate

CE,RoHS



Applications

产品连接图

Features:
-Create and manage a local area network, collect and manage thermostat data through RS485 communication protocol.

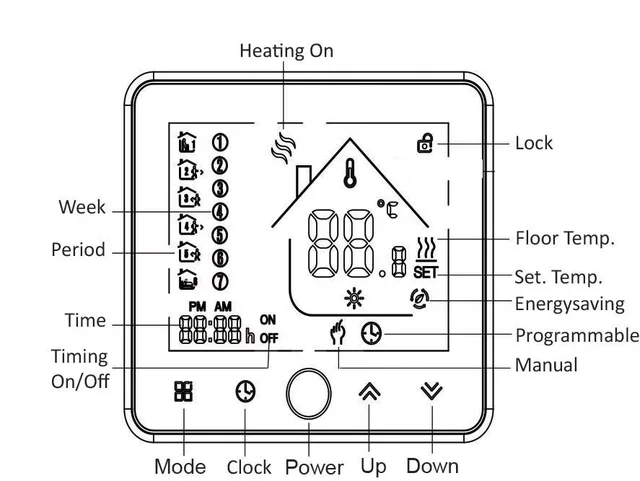

- Large LCD touch screen with backlight display
- 5+2 four periods program schedules maximize comfort and. economy.
- 6 period daily programmable controlling temperature setting
22222
  Large screen display with backlight is easy to read—even in the dark.
  One-touch temp control overrides program schedule at any time.
- Frame resistance material, safe and reliable
- Room temperature display precision is ±0.5°C
- Data memory when power is off.
- Room temperature automatically calibration function
-  Suitable for 86mm hidden box and european 60mm round box.

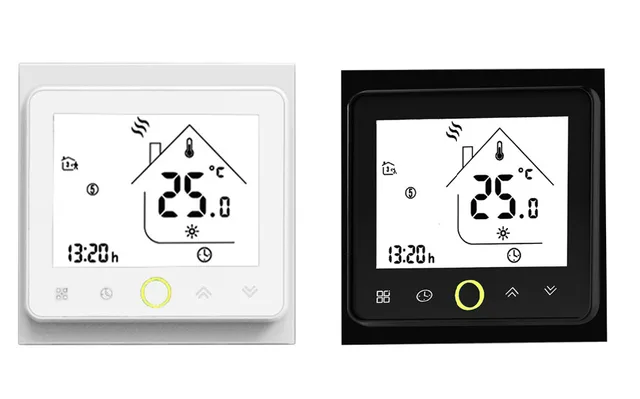

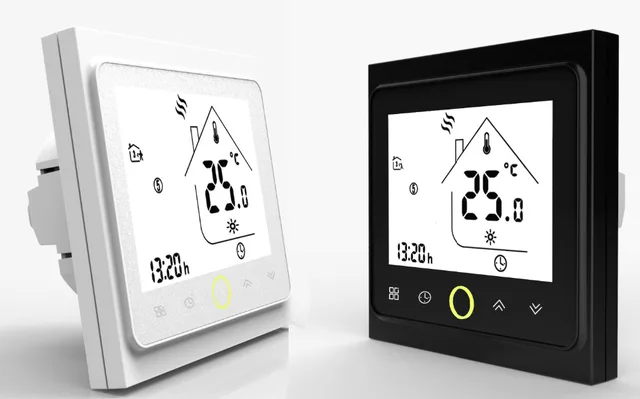

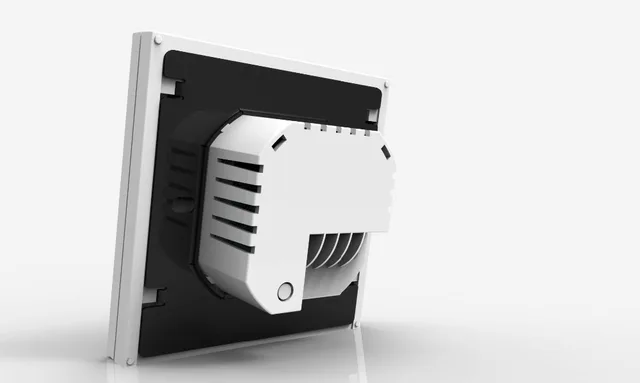

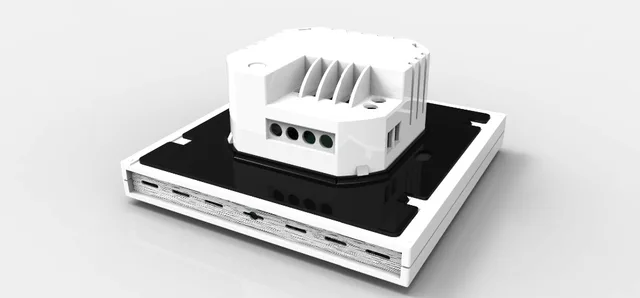

Item Pictures

bh(2)



bac002--1 bac002--2 bac002--3BHT-2BHT-3

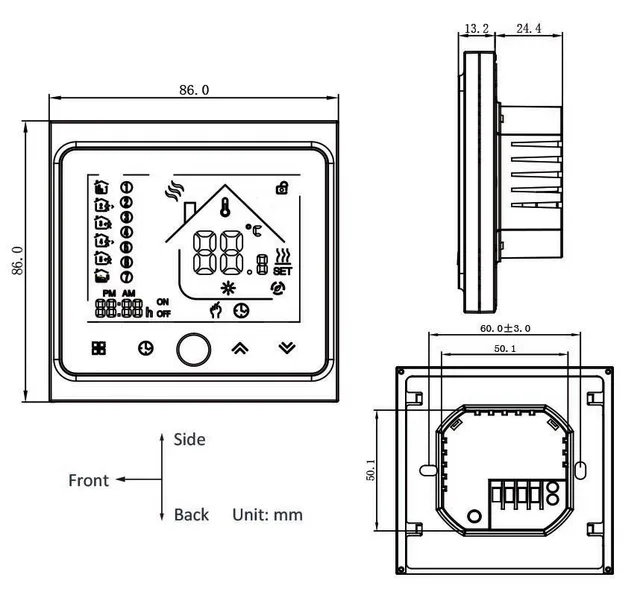

Size description

Wiring diagram



产品接线图Item display

Project installed

Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box

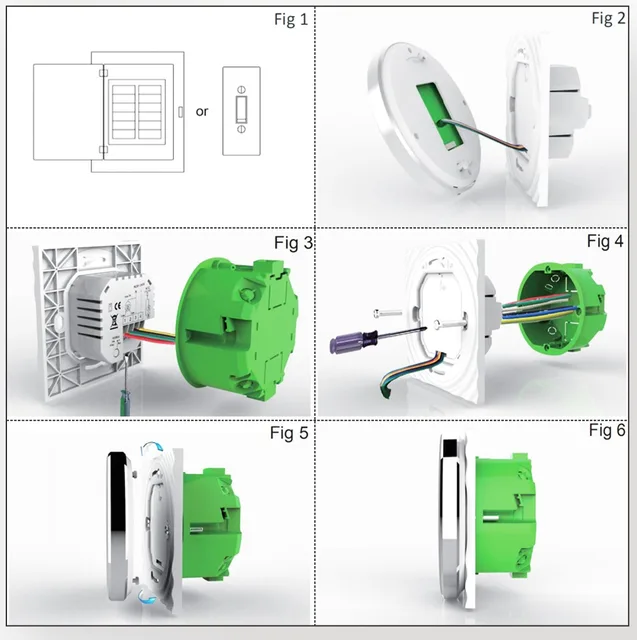

Step 1. Keep power off. See Fig 1
Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.
Step 3. Connect power supply, load into the appropriate terminals. (see "Wiring your thermostat" for details and Fig 3).
Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.
Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5.
Step 6. Installation complete. See Fig 6.

Packing List
Package include:
1* Thermostat(white&black,optional)

1*Mobile sensor(External sensor)
2* Mounting screws
1* User guide for thermostat

GBLN产品清单
